Optima 3Piece
Optima 3Piece
Optic Size: 6.00 mm
Haptic Size: 13.00 mm , 13.50 mm, 14.00 mm
Optic: Bi-Canvex
Edge Design: Continuous 360 Posterior Square Edge
Haptic Design: Modified ‘C’ loop , PVDF,
( Polyvinylne Iouride Monofilament )
Haptic Angle: 0°
AC Depth: 5 mm
Incision Size: 2.80 mm
Refractive Index: 1.4933 mm

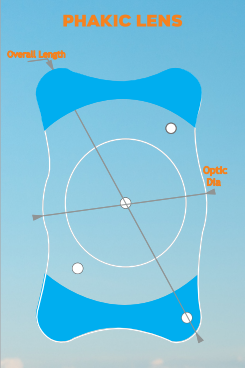

Optima PhakicLens
Optima PhakicLens
Optic Diameter | 4.50 mm to 6.00 mm
Overall Length | 10.50 mm to 14.00 mm
IOL Power (spherical equivalent Diopters) | -1.0 D to -23.0 D (in 0.5 Steps)
Material | Hydrophilic Acrylic
Optic Type | Meniscus
Vault height | 400 to 700 microns
Refractive Index | 1.460
Sterilization | Steam
Optima Tru Yellow Asphric 360 Square Edge
Optima Tru Yellow Asphric 360 Square Edge
SAF6125SQY-R
Overall Diameter: 12.50 mm
Optic Design: Aberration Neutral, Negative Aspheric Biconvex
Haptic Design: Double Haptics , 5˚ Angulation
PCO Protection: 360˚ perfect Square edge around the optic edge
Suggested A. Constant: +ve power Range: 118
Suggested A. Constant: -ve power Range: 117.4
SAF 6125-R
SAF 6125-R
Optima Fold - Bi convex
Overall Diameter: 12.50 mm
Optic Design: Spherical Biconvex
Haptic Design: Double Haptics , 5˚ Angulation
PCO Protection: 360˚ perfect Square edge around the optic edge
Suggested A. Constant: +ve power Range: 118
Suggested A. Constant: -ve power Range: 117.4

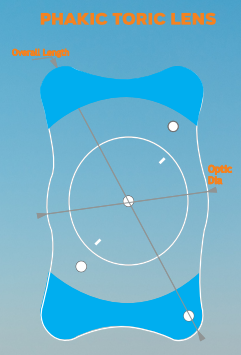

Optima Phakic Toric Lens
Optima Phakic Toric Lens
Optic Diameter: 4.50 mm to 6.00 mm
Overall Length: 11.50 mm to 14.00 mm
Material: Hydrophilic Acrylic
IOL Power (spherical equivalent Diopters):
-1.0 D to -23.0 D (in 0.5 Steps)
IOL Cylinder Power: 1.50 D to 6.00 D (in 0.5 Steps)
Addition for Near Focus: +1.00 D to +4.00 D (in 0.5 Steps)
Optic Type: Meniscus
Vault height: 400 to 700 microns
Refractive Index: 1.460
Sterilization: Steam
SAF6125SQY-R
Optic Diameter: 6.00 mm
Overall Diameter: 12.50 mm
Optic Design: Aberration Neutral, Negative Aspheric Biconvex
Haptic Design: Double Haptics , 5˚ Angulation
PCO Protection: 360˚ perfect Square edge around the optic edge
Suggested A. Constant: +ve power Range: 118
Suggested A. Constant: -ve power Range: 117.4
SAF 6125-R
Optic Diameter: 6.00 mm
Overall Diameter: 12.50 mm
Optic Design: Spherical Biconvex
Haptic Design: Double Haptics , 5˚ Angulation
PCO Protection: 360˚ perfect Square edge around the optic edge
Suggested A. Constant: +ve power Range: 118
Suggested A. Constant: -ve power Range: 117.4
Optima 3Piece
General: Hydrophobic Acrylic Foldable Multipiece ,Aspheric, Achromatic, UV Filter
Optic Size: 6.00 mm
Haptic Size: 13.00 mm , 13.50 mm, 14.00 mm
Optic: Bi-Canvex
Edge Design: Continuous 360 Posterior Square Edge
Haptic Design: Modified ‘C’ loop , PVDF ( Polyvinylne Iouride Monofilament )
Haptic Angle: 0°
AC Depth: 5 mm
Incision Size: 2.80 mm
Refractive Index: 1.4933 mm
Optima PhakicLens
Model : IMPCL 619 | IMPCL 621 | IMPCL 622 | CL 603 | CL 306
Optic Diameter | 4.50 mm to 6.00 mm
Overall Length | 10.50 mm to 14.00 mm
IOL Power (spherical equivalent Diopters) | -1.0 D to -23.0 D (in 0.5 Steps)
Material | Hydrophilic Acrylic
Optic Type | Meniscus
Vault height | 400 to 700 microns
Refractive Index | 1.460
Sterilization | Steam
Optima Phakic Toric Lens
Model: PT 550 | PT 551 | PT 552 | PT 553 | PT 554
Optic Diameter: 4.50 mm to 6.00 mm
Overall Length: 11.50 mm to 14.00 mm
Material: Hydrophilic Acrylic
IOL Power (spherical equivalent Diopters): -1.0 D to -23.0 D (in 0.5 Steps)
IOL Cylinder Power: 1.50 D to 6.00 D (in 0.5 Steps)
Addition for Near Focus: +1.00 D to +4.00 D (in 0.5 Steps)
Optic Type: Meniscus
Vault height: 400 to 700 microns
Refractive Index: 1.460
Sterilization: Steam
